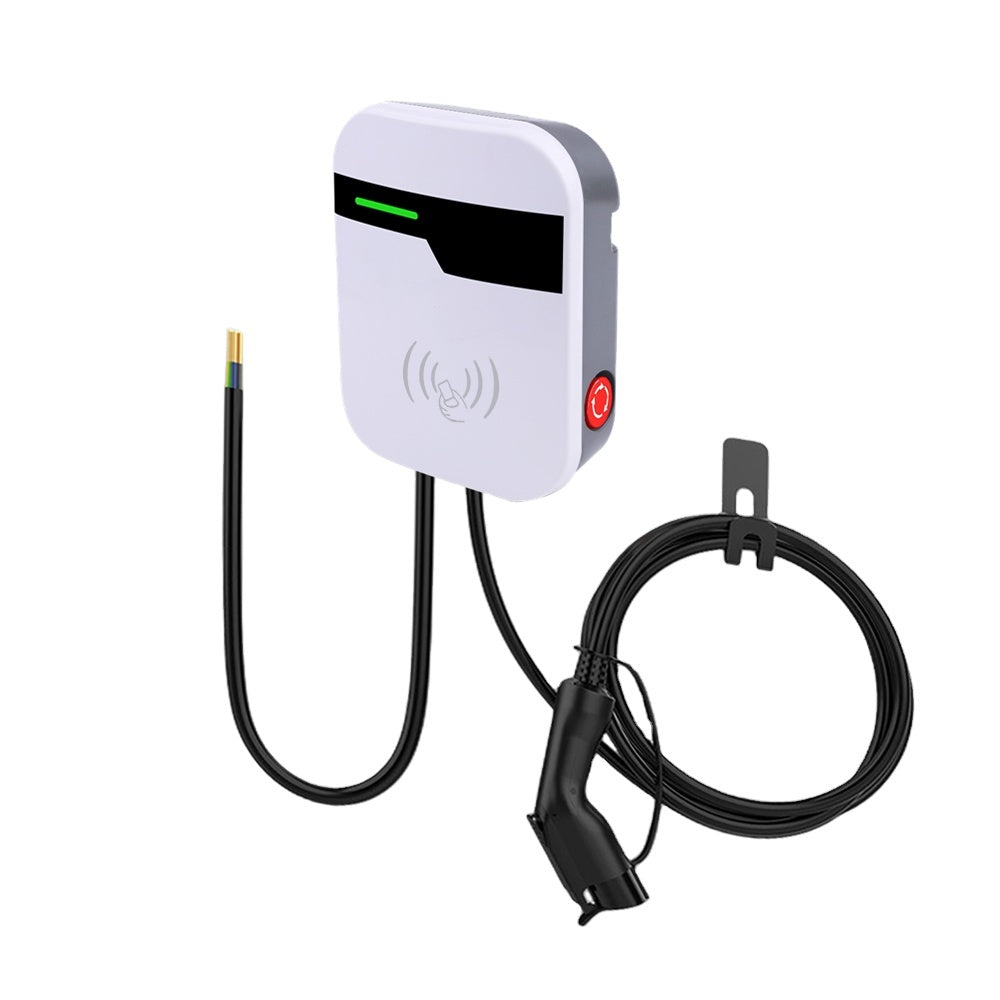

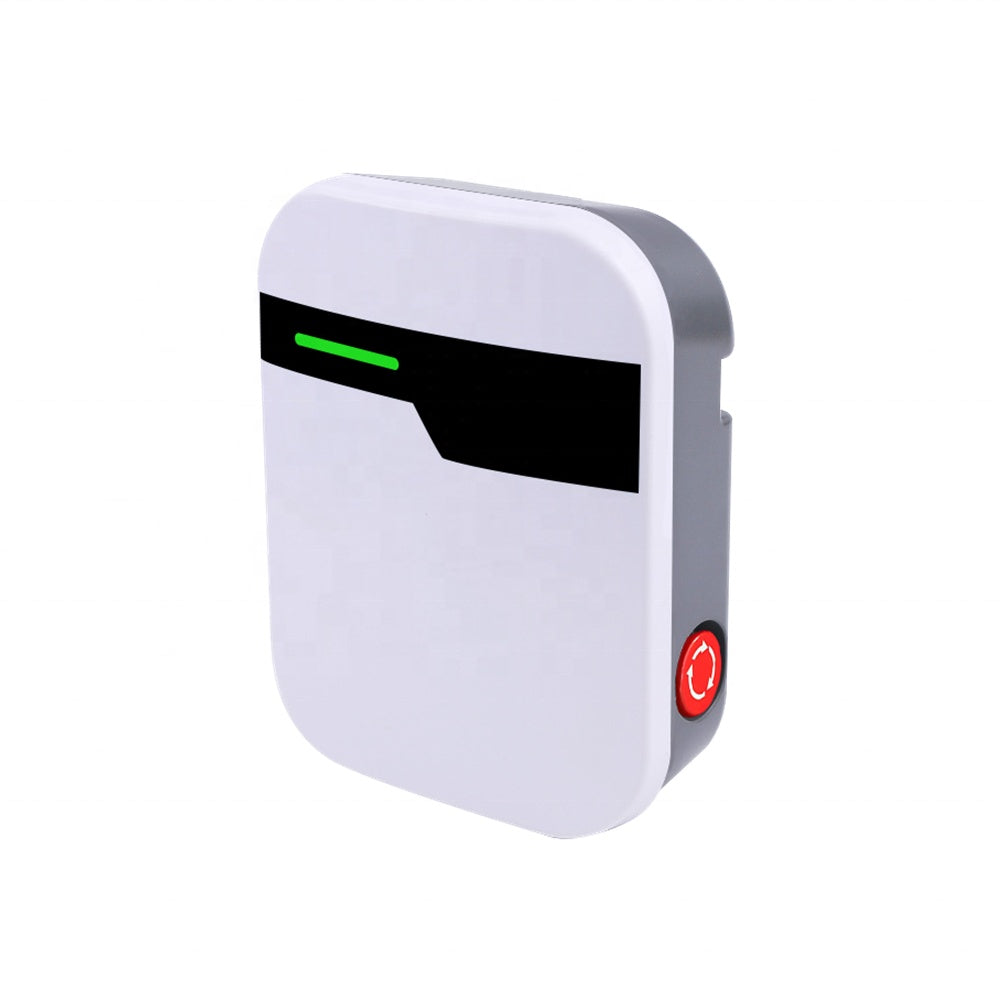

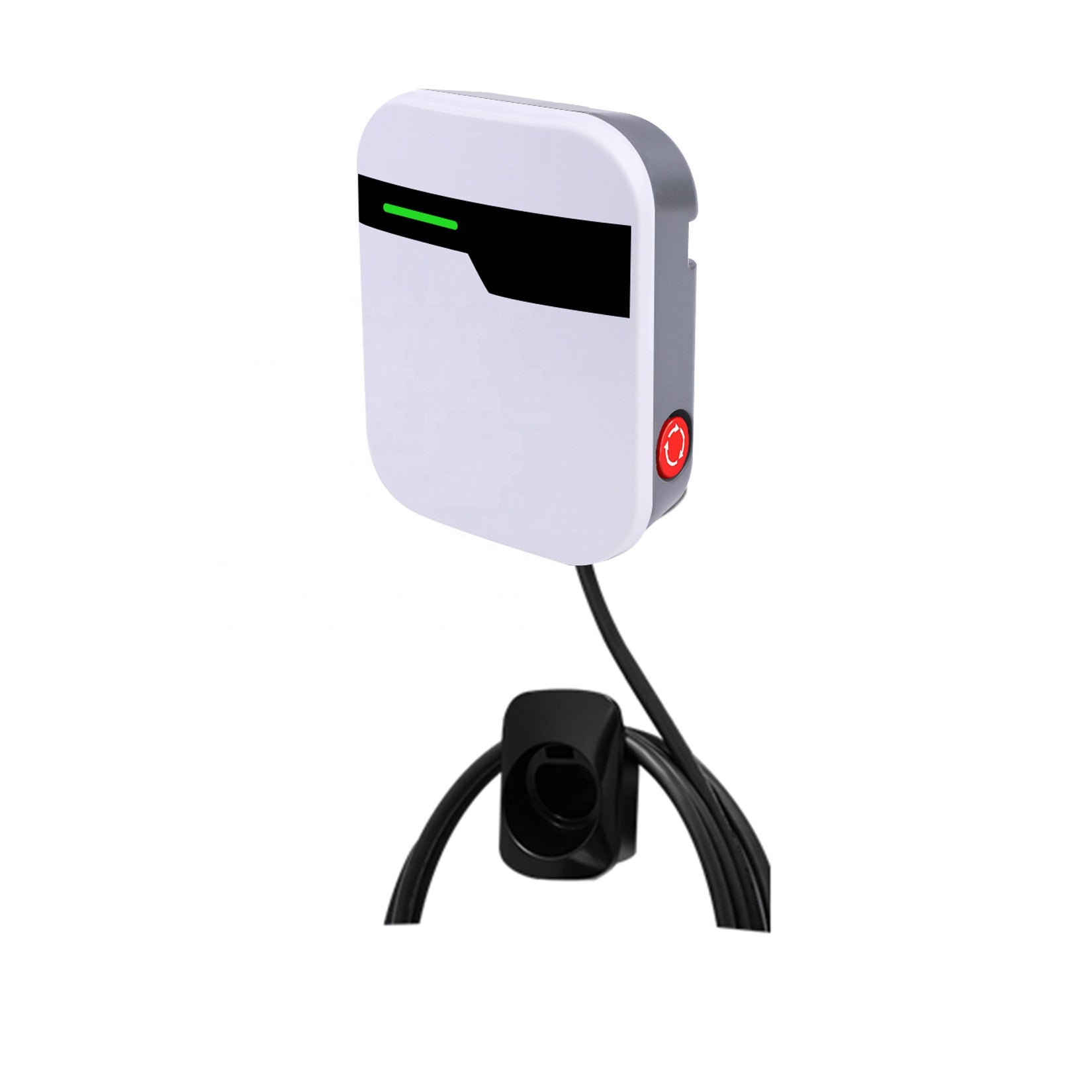

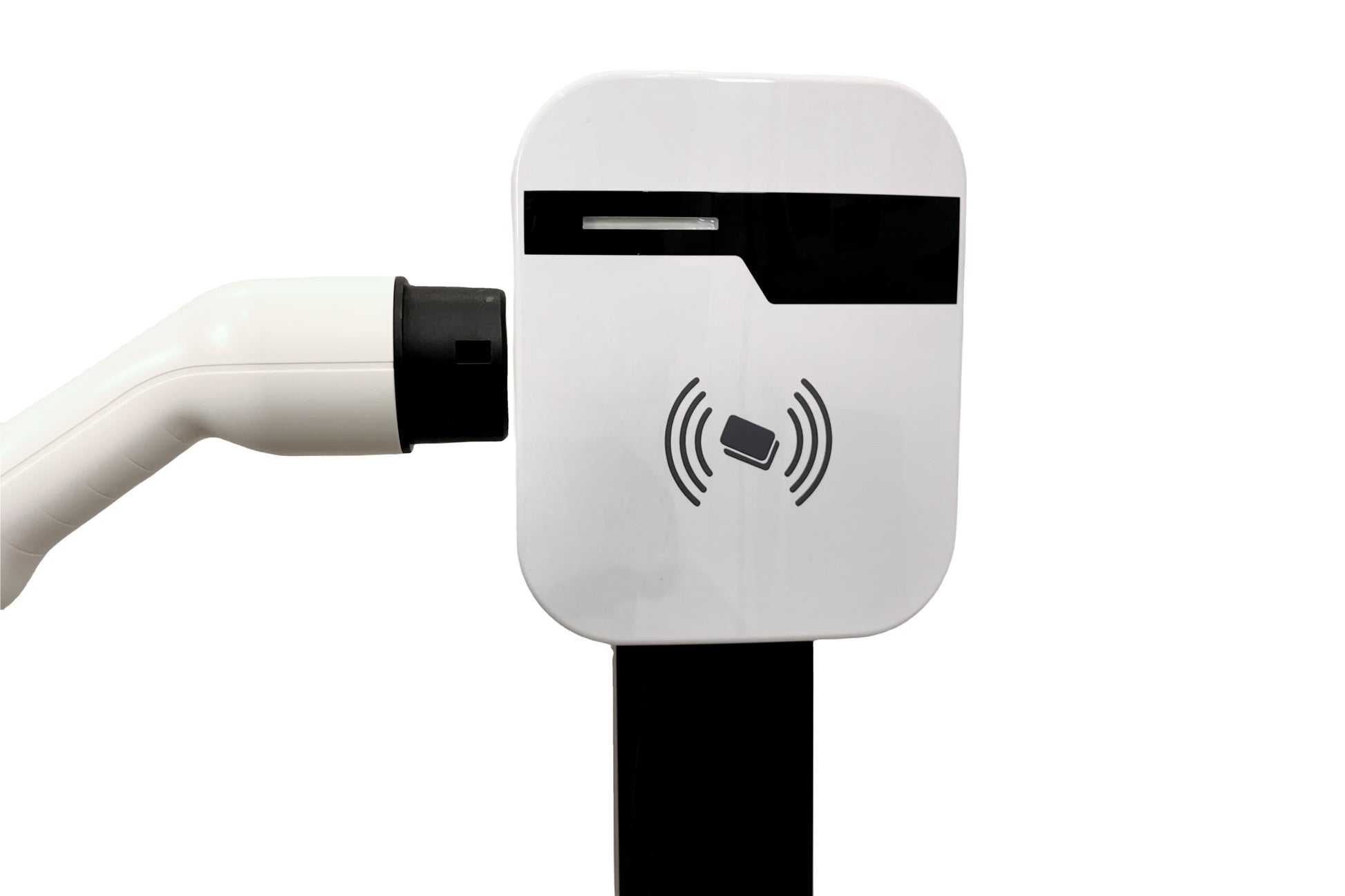

Type 2 EV Wall Charger 7kW 32A Fast Charging Station With 5m Cable RFID App Control
Charge your electric vehicle quickly and safely with this powerful 7kW wall-mounted Type 2 EV charging station. Compatible with most electric vehicles across Europe, this unit offers flexible installation, smart control, and multiple safety features — ideal for home garages, driveways, or commercial parking areas.
✅ Key Features:
-
⚡ Fast 7kW AC Charging – Up to 32A single-phase charging for rapid energy delivery
-
Type 2 Connector (IEC 62196-2) – Europe-standard plug, compatible with most EVs
-
Smart App Control – Monitor and control charging remotely via the "Smart Life" app (Wi-Fi or 4G supported)
-
️ RFID Access Control – Start/stop charging with included RFID cards for secure usage
-
Connectivity Options – Supports Wi-Fi / Bluetooth / optional 4G for remote access
-
Weatherproof Design (IP54) – Built to handle outdoor conditions from -30°C to +55°C
-
Easy Wall-Mount Installation – Ideal for home, office, or shared EV parking spots
-
Dynamic Load Balancing – Prevents overloads by adjusting output automatically (CT sensor required)
-
OCPP 1.6J Compatible – Supports open protocols for backend systems
Technical Specifications:
-
Input Voltage: 230V (1/N/PE)
-
Rated Current: 16A/32A
-
Power Output: Max 7kW
-
Input Frequency: 50Hz
-
Cable Length: 5 meters (Type 2)
-
Connectivity: Wi-Fi, Bluetooth, 4G (optional)
-
Operating Temp: -30°C to +55°C
-
Noise Level: <30 dB
-
Dimensions: 23 × 28 × 9 cm
-
Mounting: Wall-mounted
-
Protection Rating: IP54
Package Includes:
-
EV Charger with 5m Type 2 Cable
-
RFID Cards
-
Mounting Kit
-
User Manual
