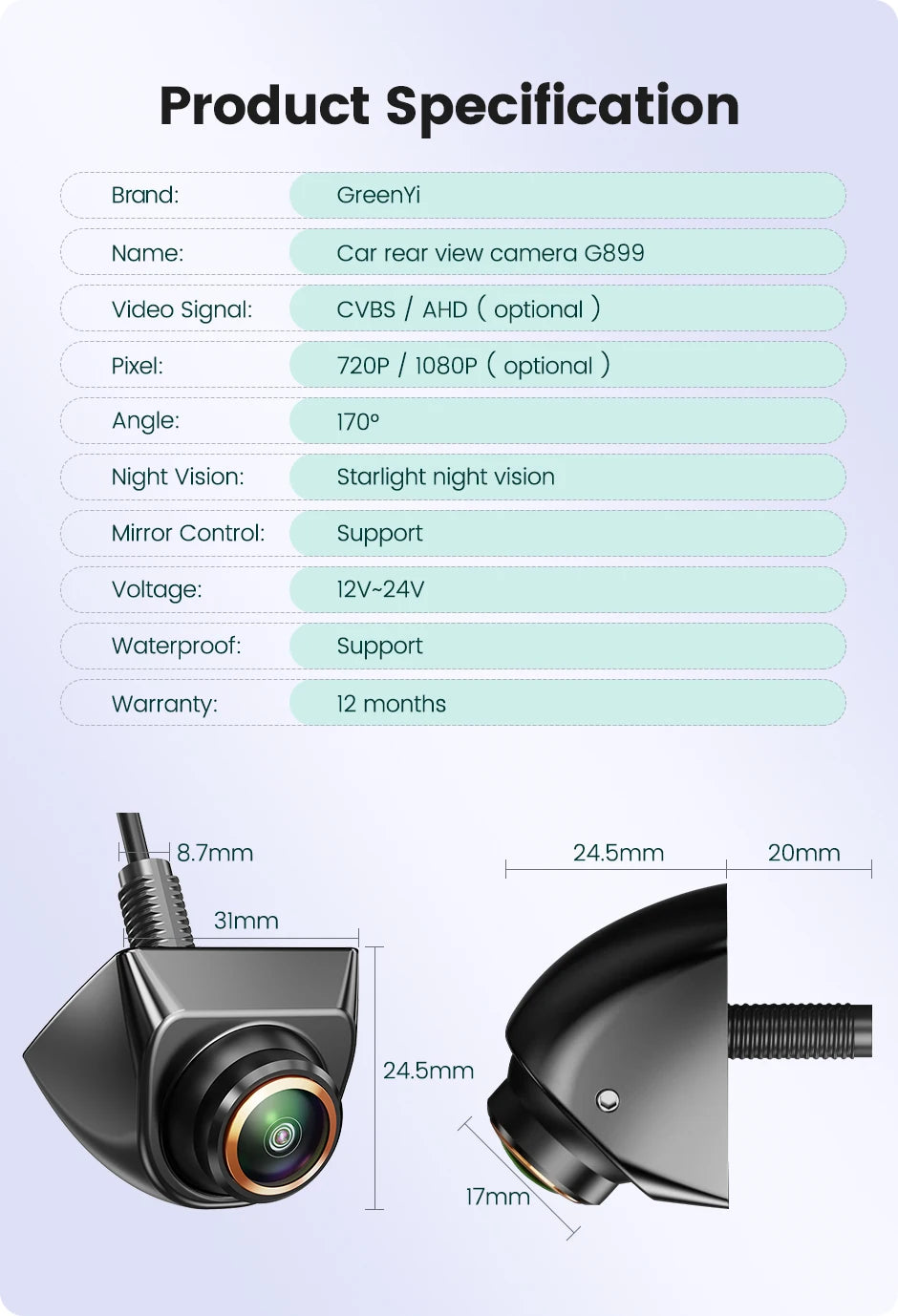

GreenYi AHD 1920x1080P Night Vision 360 Degree Adjustable Fisheye Lens Car Cam Front/Side/Rear View Camera
Alarm Type: Vehicle Backup Cameras,ACCESSORIES,Front,Front Side,Rear Side
Camera chip: AHD/Sony OV2053
Certification: CE
Choice: yes
Effective Pixels: 1920*1080P For AHD
Guiding Line: Yes
High-concerned chemical: None
Length of Video Cable: 6M

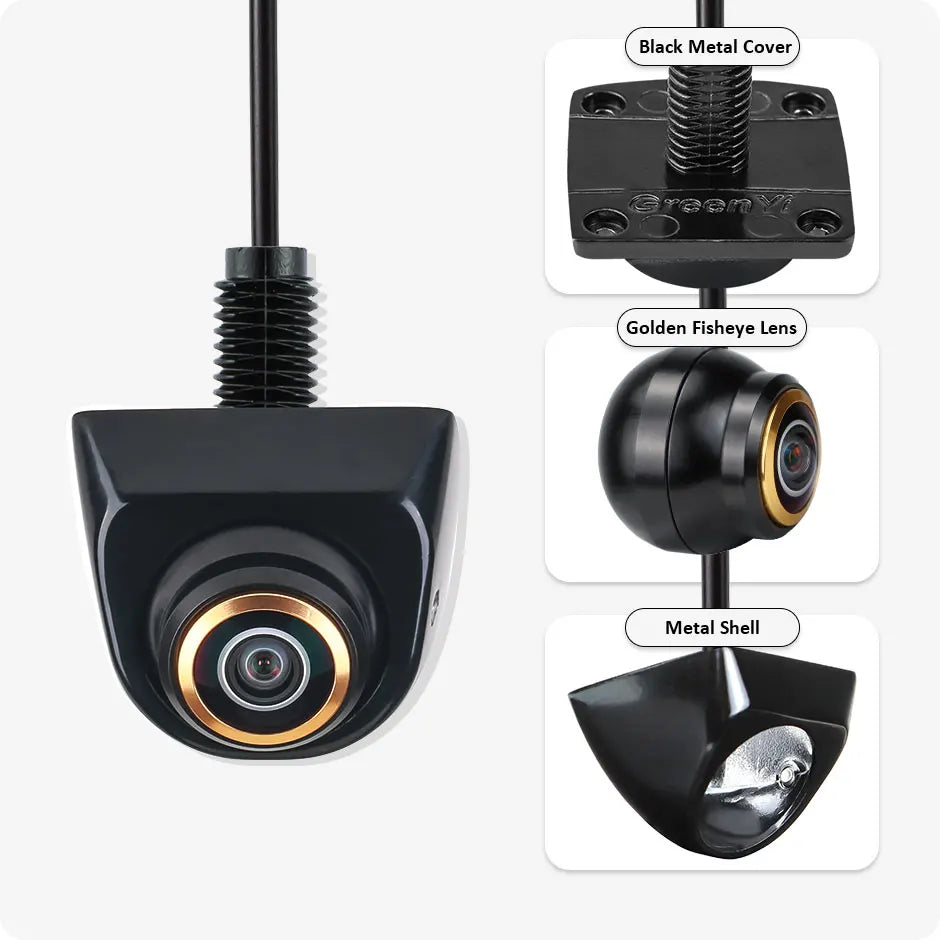

Lens: Golden Metallic Glass Lens
Lens Material: Glass
Material: ABS
Model: G-3AC899
Parking Assistance Type: Front Rear Side View Camera
Shell Material: Aluminium alloy
Signal Format: NTSC / PAL
Video output: AHD and CVBS Video signal
Viewing Angle : 170°
Wire or Wireless: Wire
semi_Choice: yes

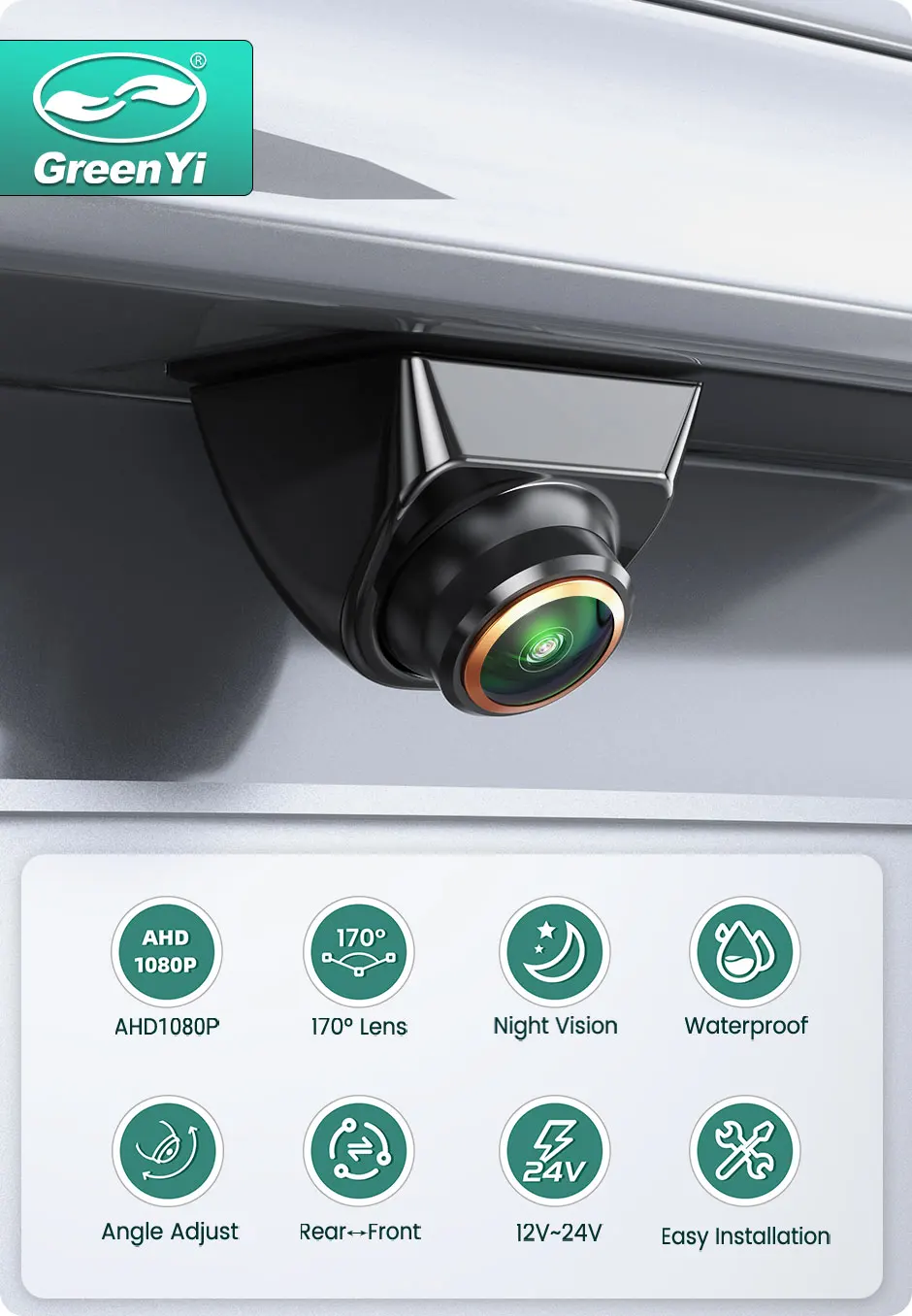

New GreenYi AHD 1080P 360 Degree Adjustable Night Vision Fisheye Lens Car Reverse Backup Cam Front/Side/Rear View Camera

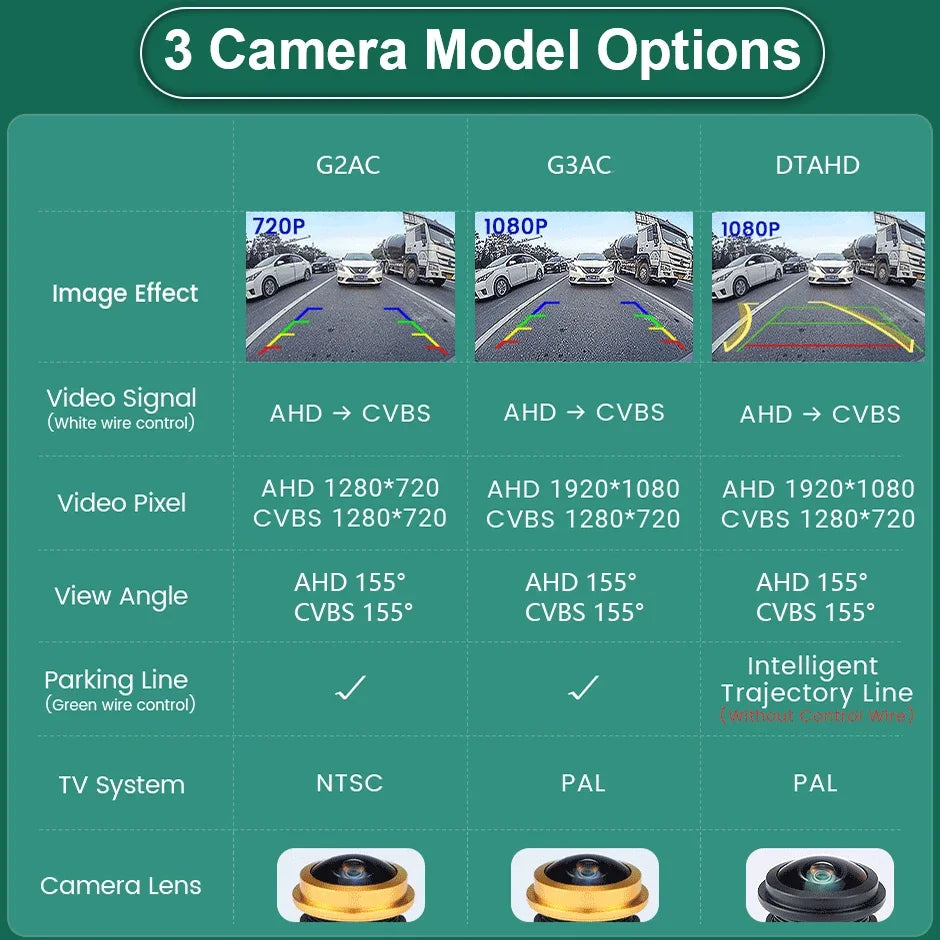

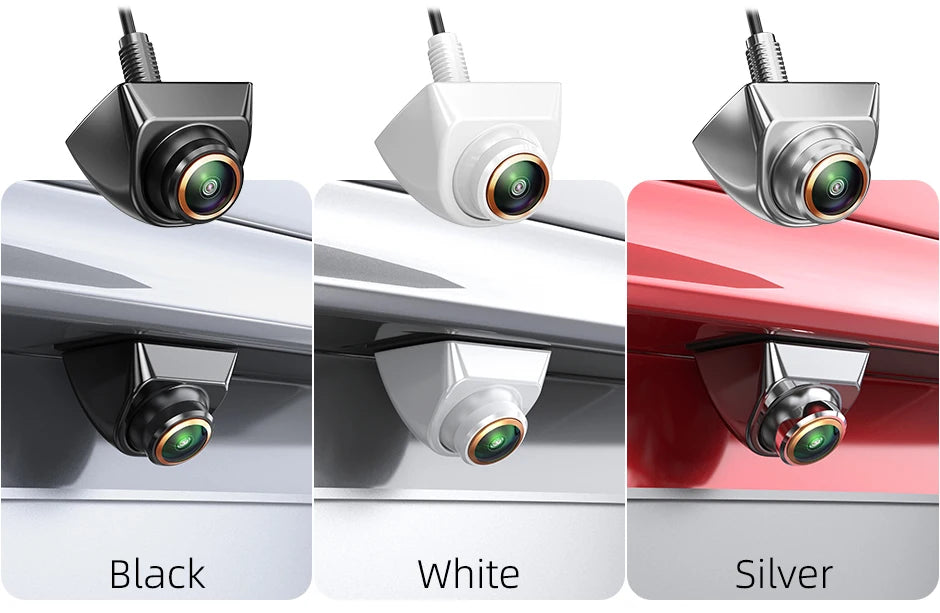

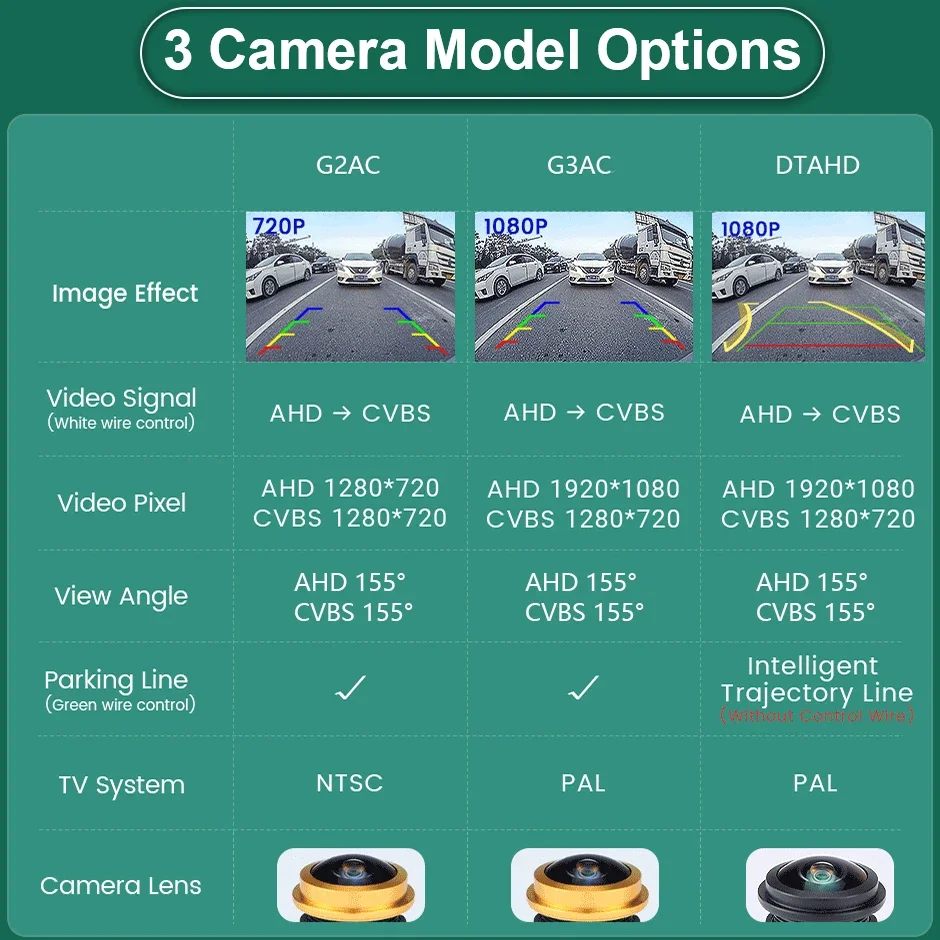

3 Camera Optional
Tips, About AHD1080P Style:

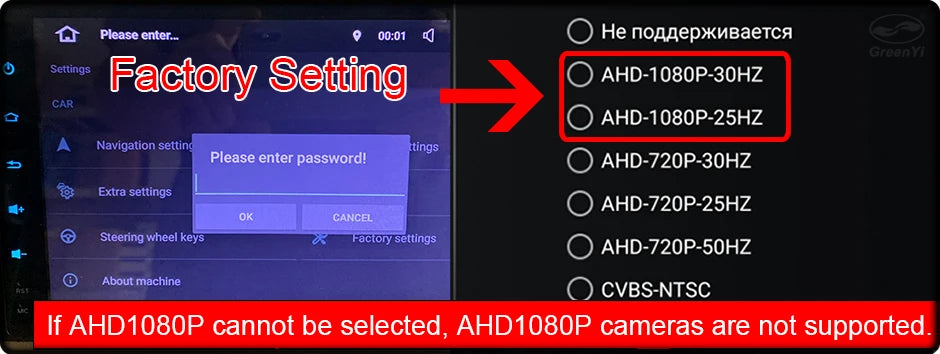

Please check whether the Android unit supports AHD1080P camera!
If AHD1080P cannot be selected, AHD1080P cameras are not supported!
Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD1080P

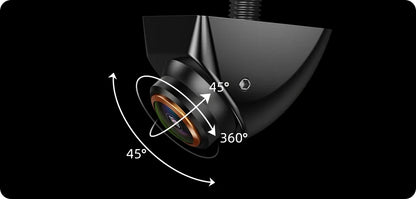

Adjustable Angle :
You can adjust the camera angle, can also rotate the camera.
(Use the inside corner wrench to loosen the screw)

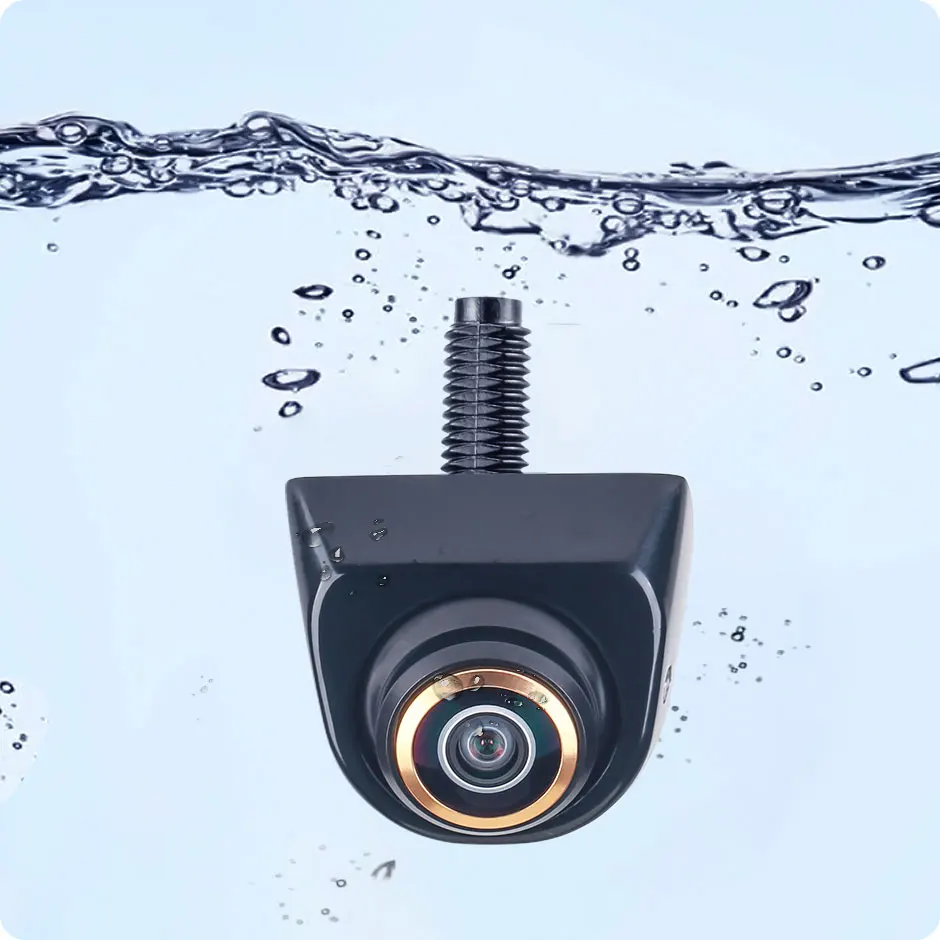

Waterproof :
The camera is filled with waterproof silicone, Effective chip protection,
IP68-Rated for Use in Extreme Conditions

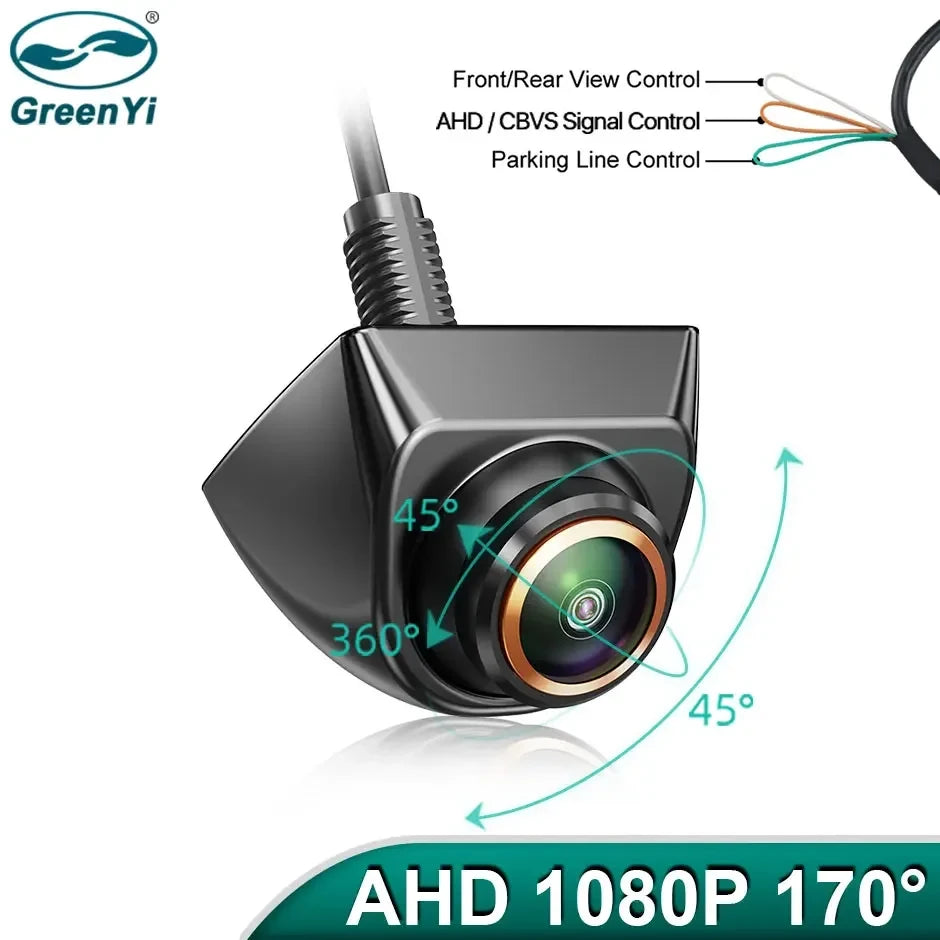

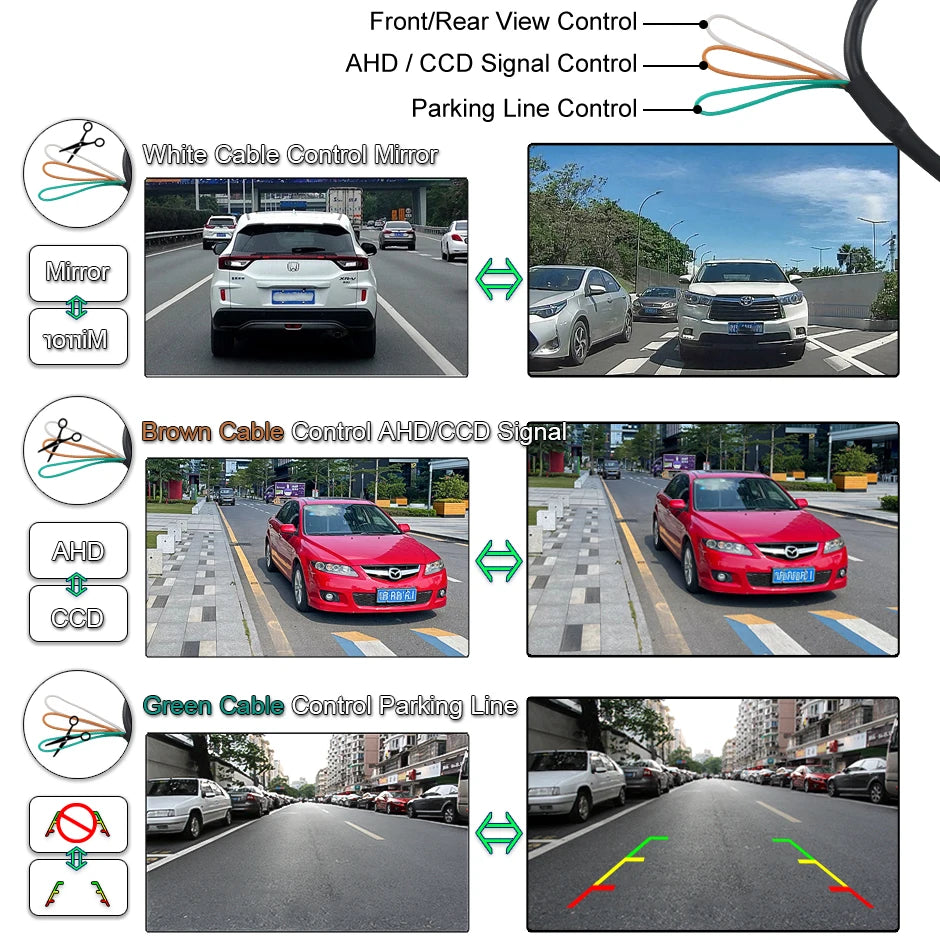

3 Control wire adjustable :
White: Mirror control
Brown: Signal control
Green: Parking line switch

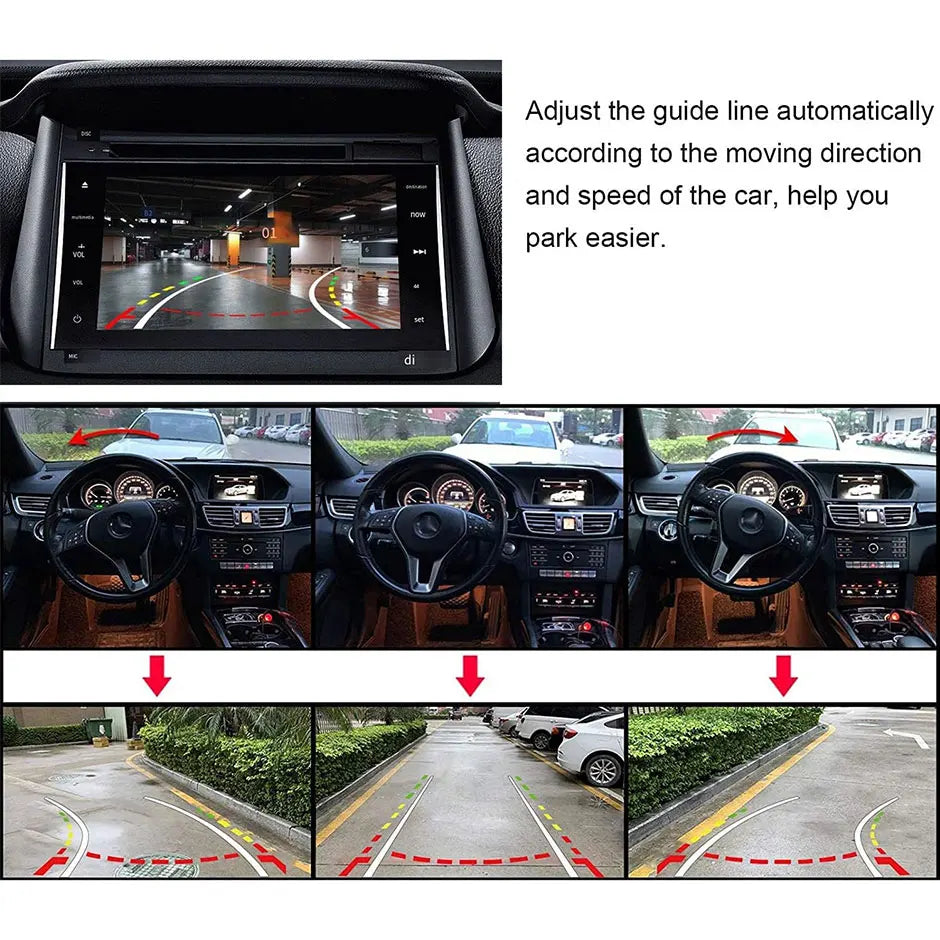

Dynamic Trajectory Effect
* The camera comes with dynamic track parking lines, which will follow the vehicle's action by themselves, without steering wheel operation.
*The intelligent dynamic trajectory guide line changes according to the body's movement angle and speed when reversing.
Note: The trajectory line does not move according to the steering wheel.( Not Support Original Canbus Data) The camera is suitable for aftermarket DVD, Android display.

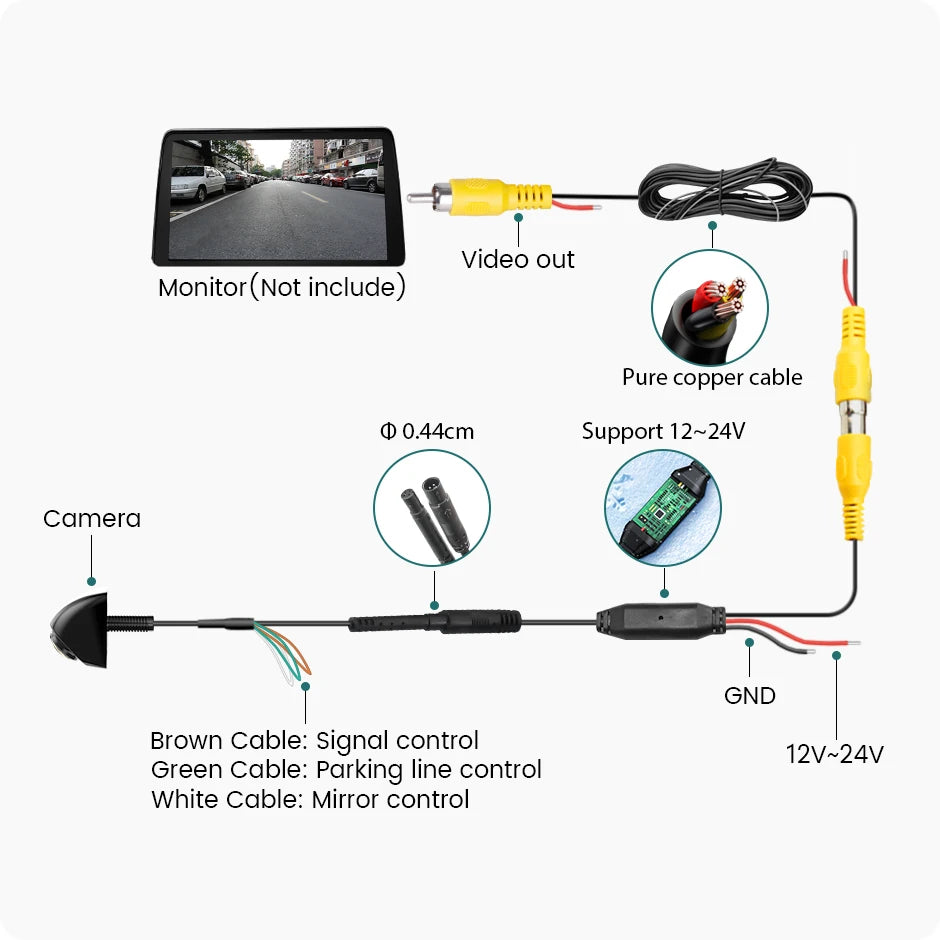

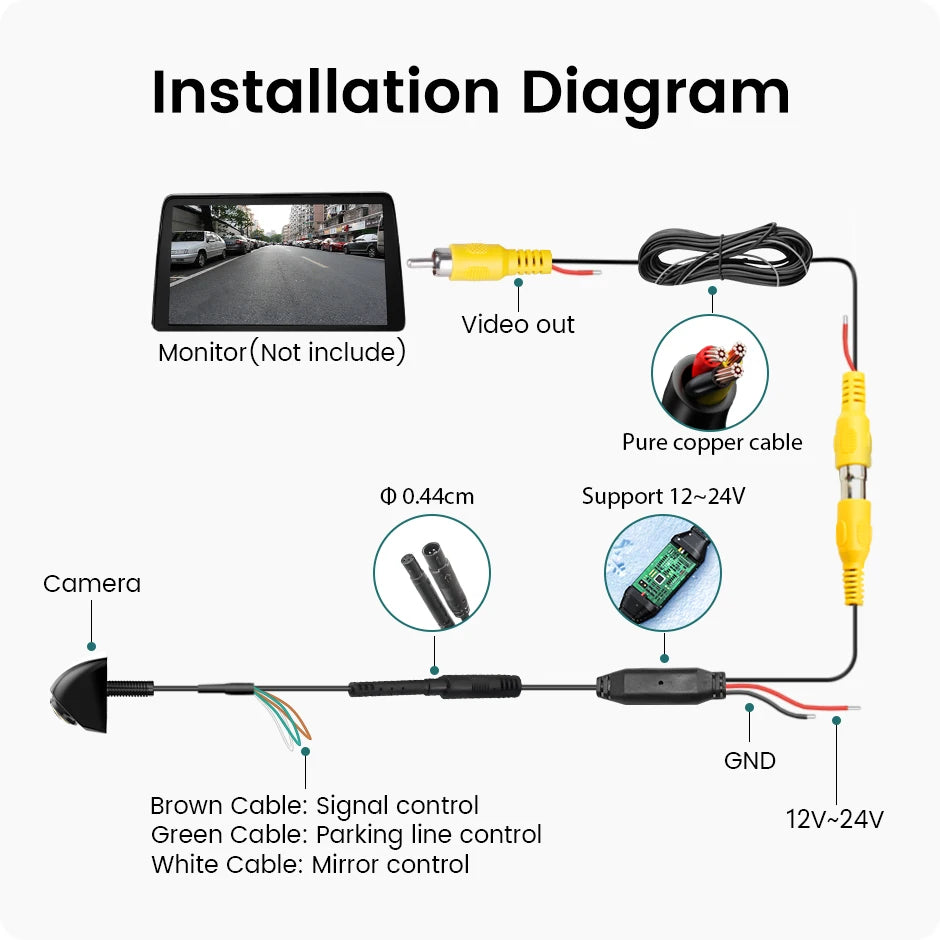

Installation Diagram :
Installation Steps:

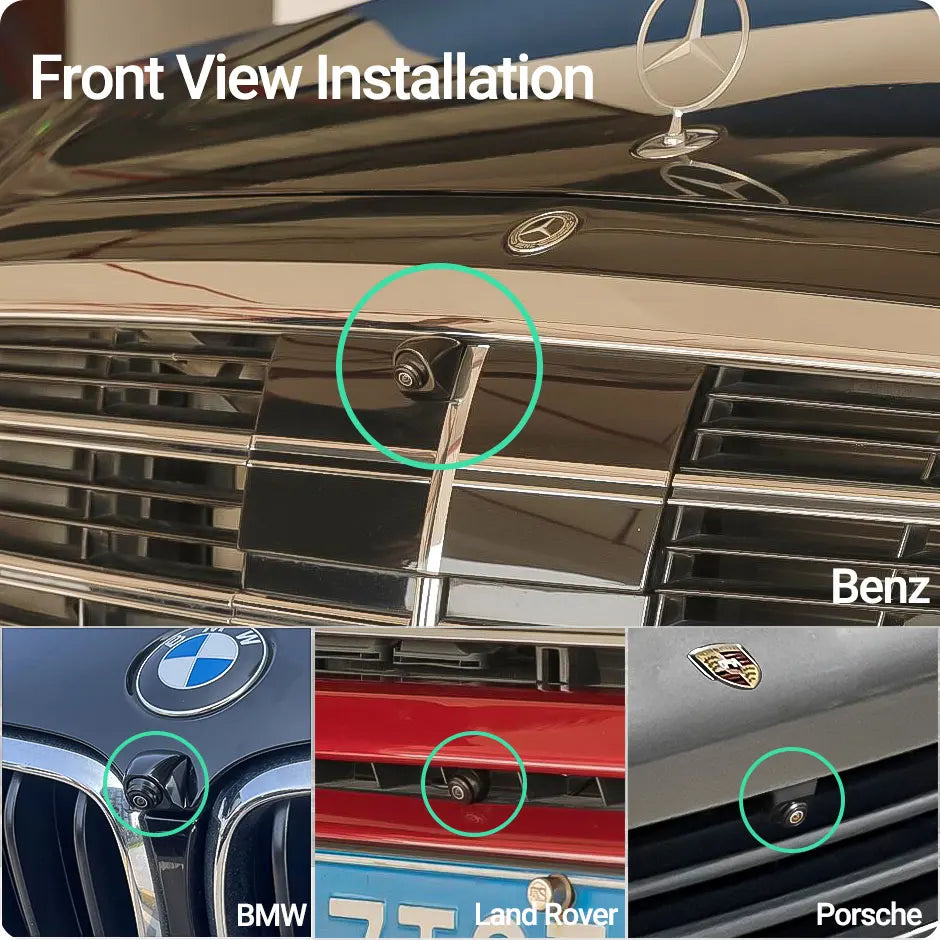

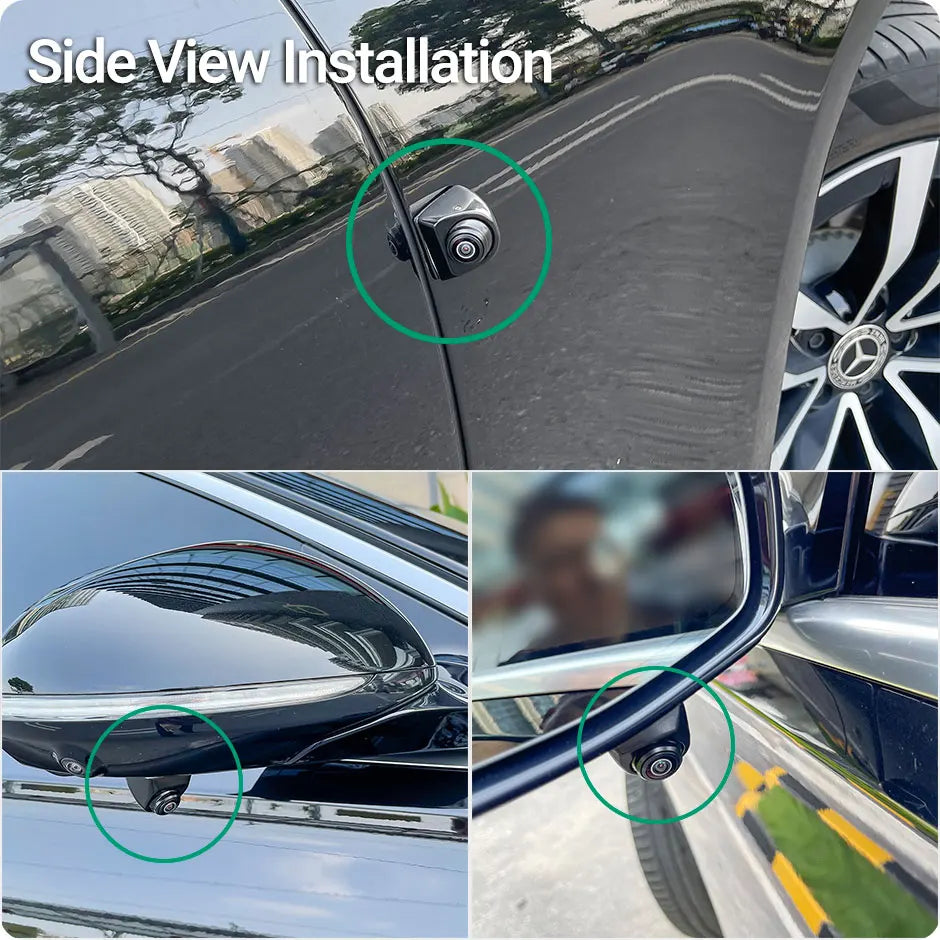

1. Find a suitable angle to mount the parking camera (Fit for Front/Rear/Left/Right), then secure the nuts and bolts in place.
2. Connect the power cord to the backup light or brake Light or Left/Right signal light power supply.
3. Connect the 6m extension cable of the parking camera to the head unit/other monitor of the car.
4. Start the vehicle and reverse gear to test the camera.
5. Reinstall the console/other monitor.
AHD Camera Feature :
Can solve the problem of image offset and image angle deviation of the installation location
Image automatic calibration function, prevent spherical images, reversing more secure

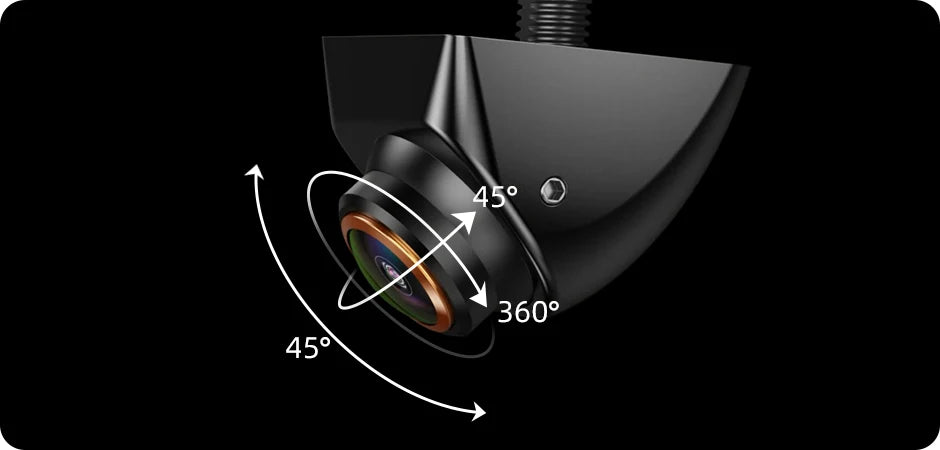

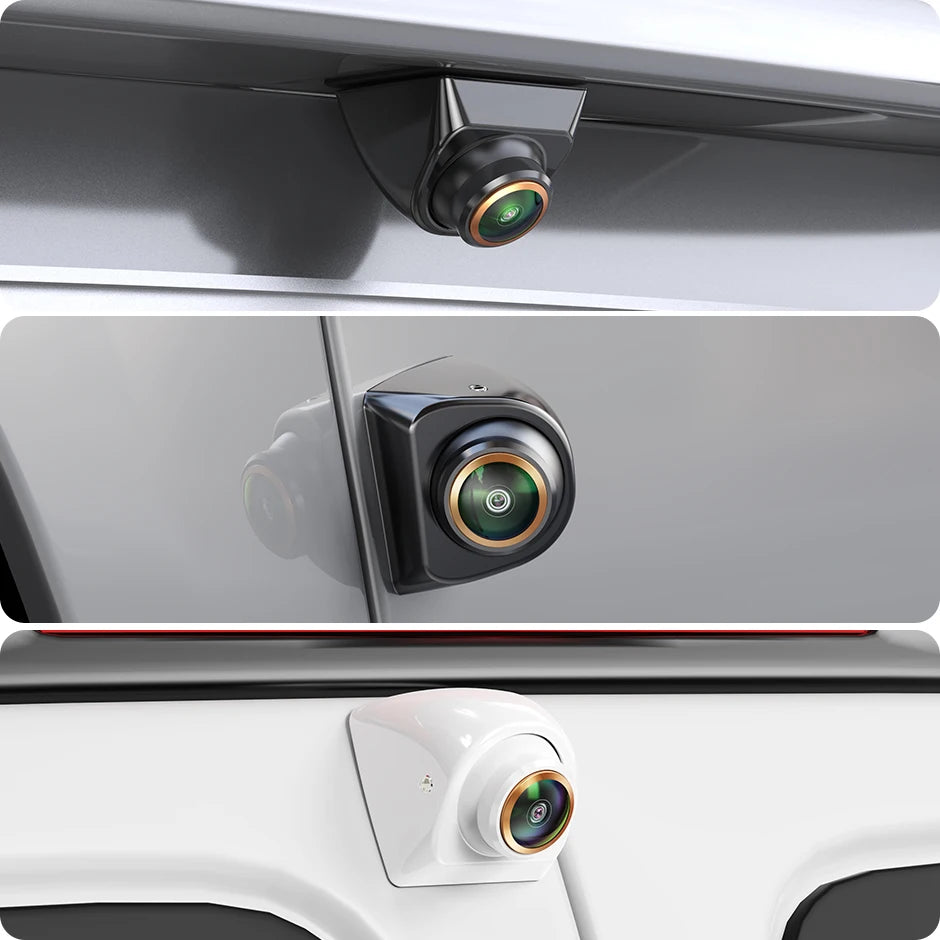

* The Camera is 360 Degree rotation and 45 degree UP/Down image angle adjustable . it can solve the problem of image offset and image angle deviation of the installation location. Fit For Front /Rear/Left/Right Installation Location For Car. it support upside down install .
* Chips components : AHD Sony/OV2053HD . Support Front Rear Mirror Image Control .
* Viewing angle: Fisheye 6 glass lens . Real 170 degrees viewing angle, no worry about blind spot area, IP68 waterproof.
* Effective pixels : AHD 1280*720P/1920*1080P , CVBS 1280*720P .
* Signal format: NTSC / PAL
* Image resolution: 200W Pixels
* Video output: AHD Video Signal or CVBS Signal .
* Night Vision: Starlight Night Vision. The visible distance is greater than 10 meters.
* Night Vision Image : Automatic Gain Control, Auto White Balance, Auto Backlight Compensation
* Lens : 14/16MM Fisheye 6 glass Lens .
* Low illumination: 0.01Lux
* Signal to noise ratio: ≥69dB
* Working power supply: DC12V~24V/2A
* Working temperature: -45 °C ~ +70°C
* Maximum power: 3W

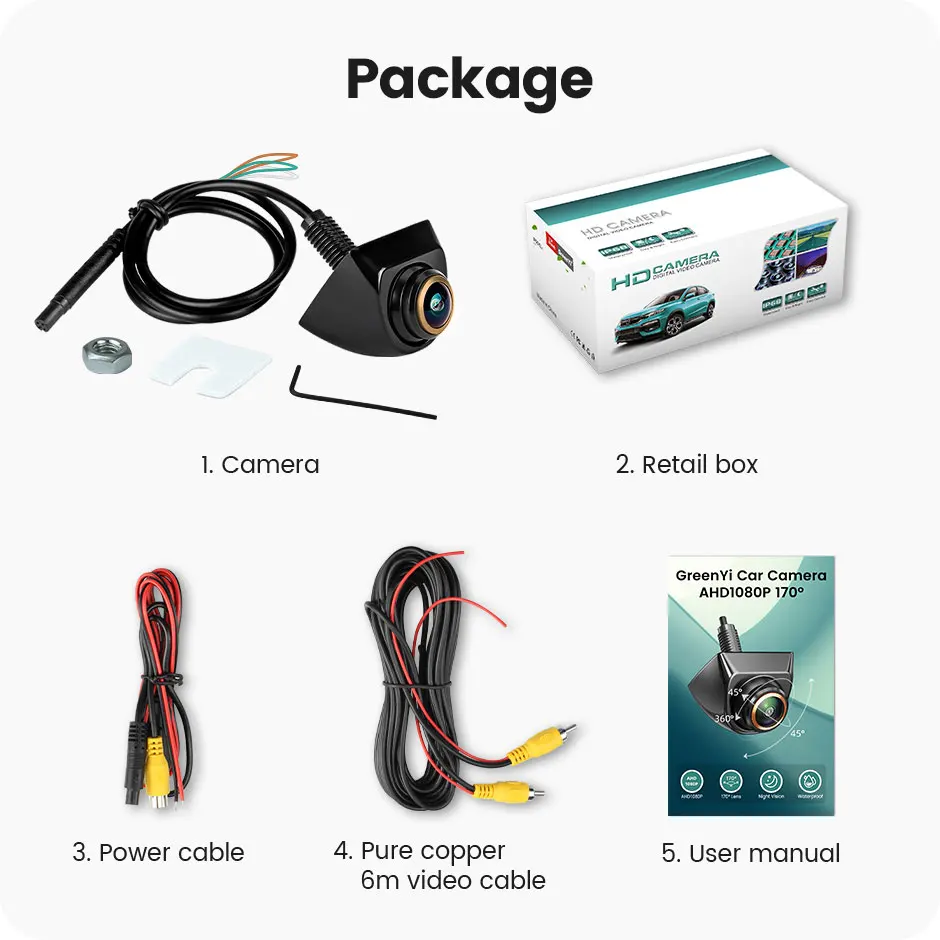

Package includes:
1. GreenYi car camera
2. Retail box
3. Power cable
4. Pure copper 6m video cable
5. User manual
