170 Degree 1920*1080P HD AHD Night Vision Vehicle Rear View

170 Degree 1920*1080P HD AHD Night Vision Vehicle Rear View

Regular price $63.99 USD
Regular price $97.99 USD Sale price $63.99 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

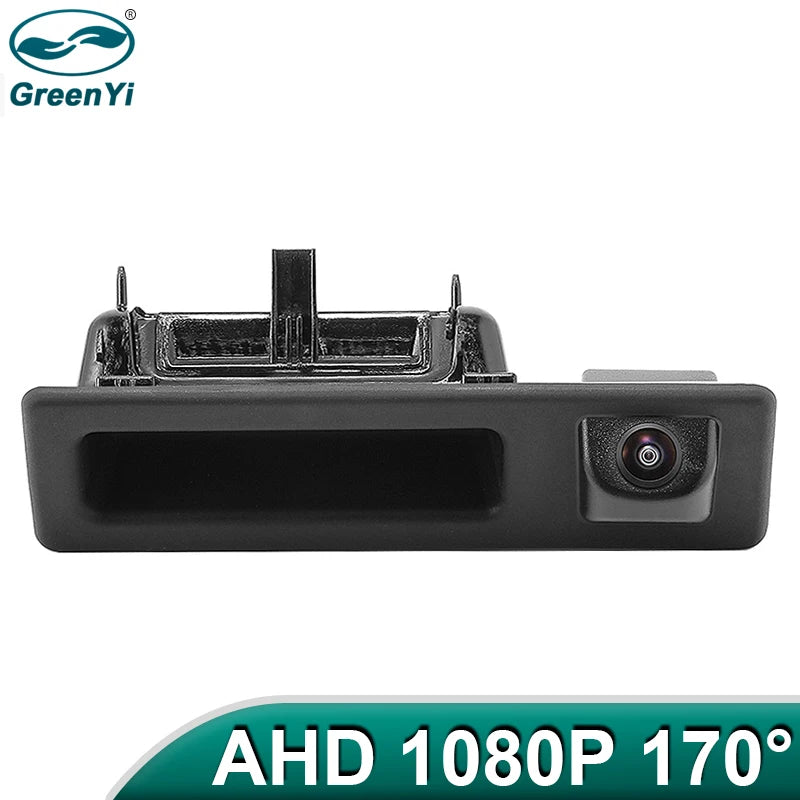

GreenYi 170 Degree 1920*1080P HD AHD Night Vision Vehicle Rear View Camera For BMW 5 series F10 F11 3 series F30 F31 F32 X3 F25



Alarm Type: Vehicle Backup Cameras,ACCESSORIES,Rear Side

Brand Name: GreenYi

Certification: CE,RoHS

Choice: yes

Fit For: For BMW 3 5 Serise X1 X3 X4 X5 F10 F11 F25 F30 F31 E60 E61 E70 E71 E72 E82 E88 E84 E90 E91 E92 E93 2011-2015

Guiding Line: Yes

High-concerned chemical: None

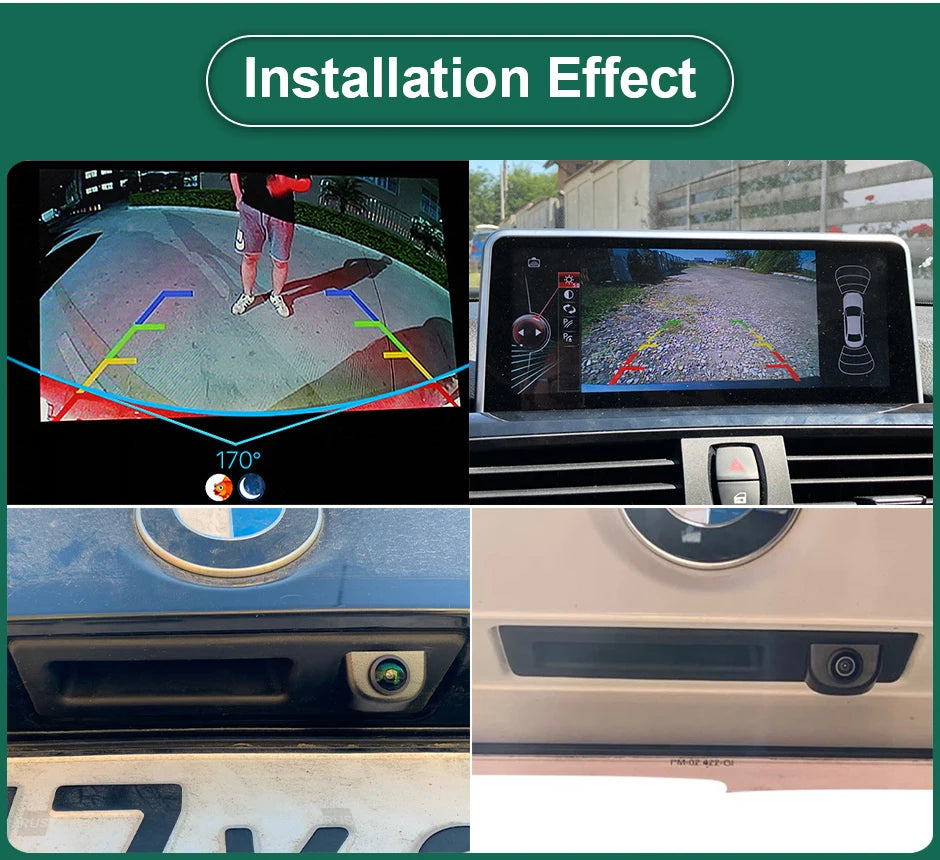

Installation Location: Vehicle Trunk Handle

Length of Video Cable: 6M

Lens Material: Glass

Lens angle: 170 degree fisheye Lens

Material: Plastic

Night Vision: Top Starlight Night Vision

Pixels: 1080P Optional

Power: DC 12V

SKU: LS942

Shell Material: Plastic

TV System: NTSC or PAL

Viewing Angle : 170°

Waterproof: Support

Wire or Wireless: Wire

semi_Choice: yes



2255800618529379-15469017596235

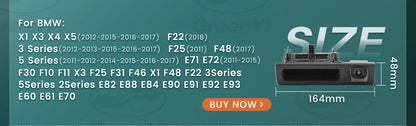

Note: These car models are for reference only. Please check the size of your originals Trunk handle before purchasing and then choose the suitable model.

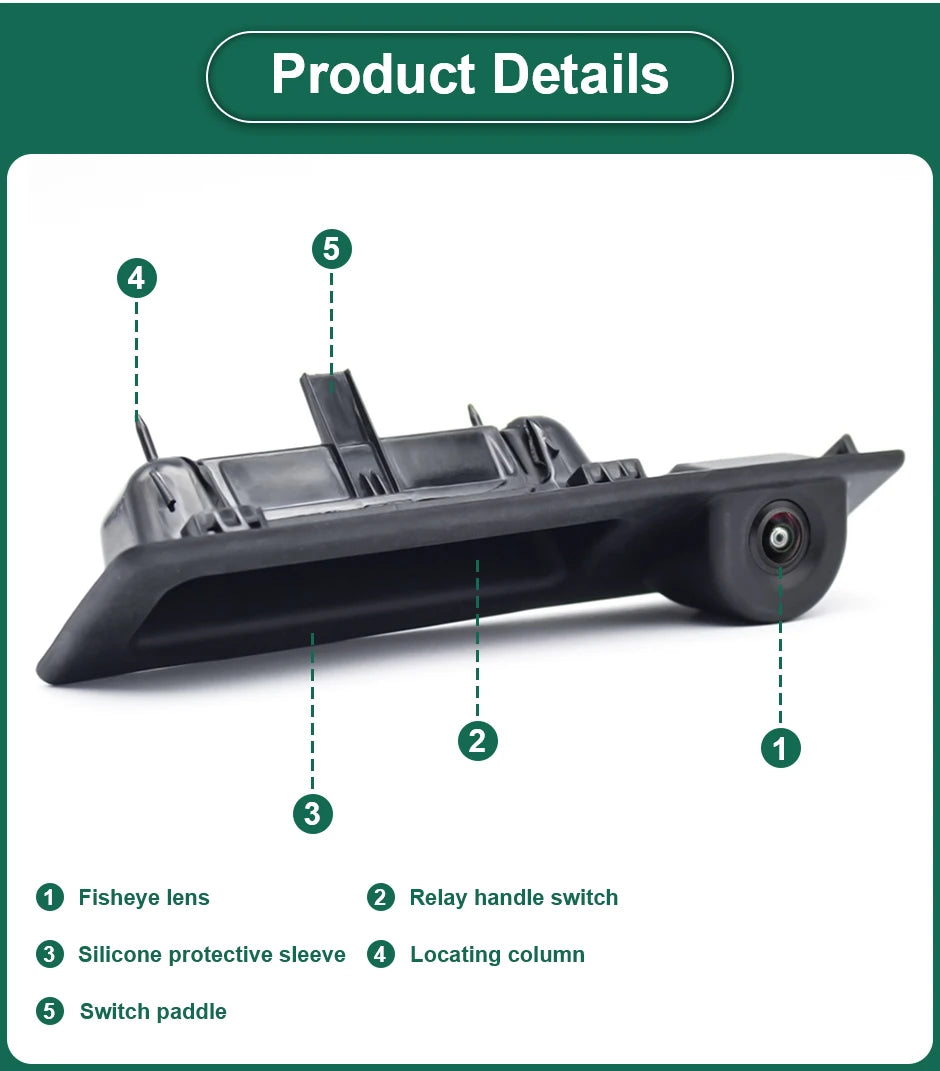

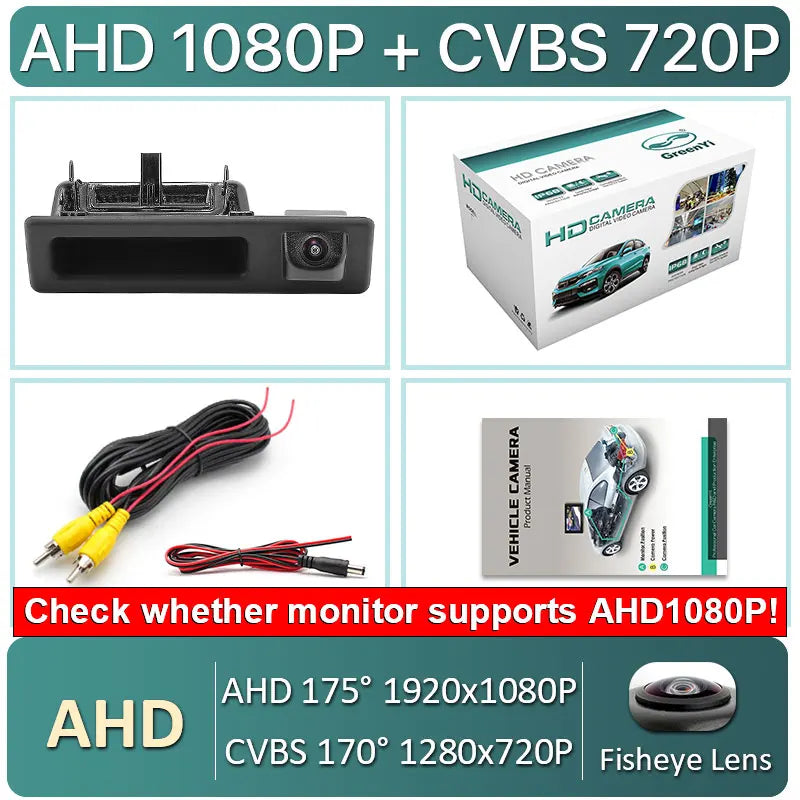

AHD 1080P Car Rear View Trunk Handle Camera For BMW 3 5 Serise X1 X3 X4 X5 F10 F11 F25 F30 F31 E60 E61 E70 E71 E72 E82 E88 E84 E90 E91 E92 E93 2011-2015

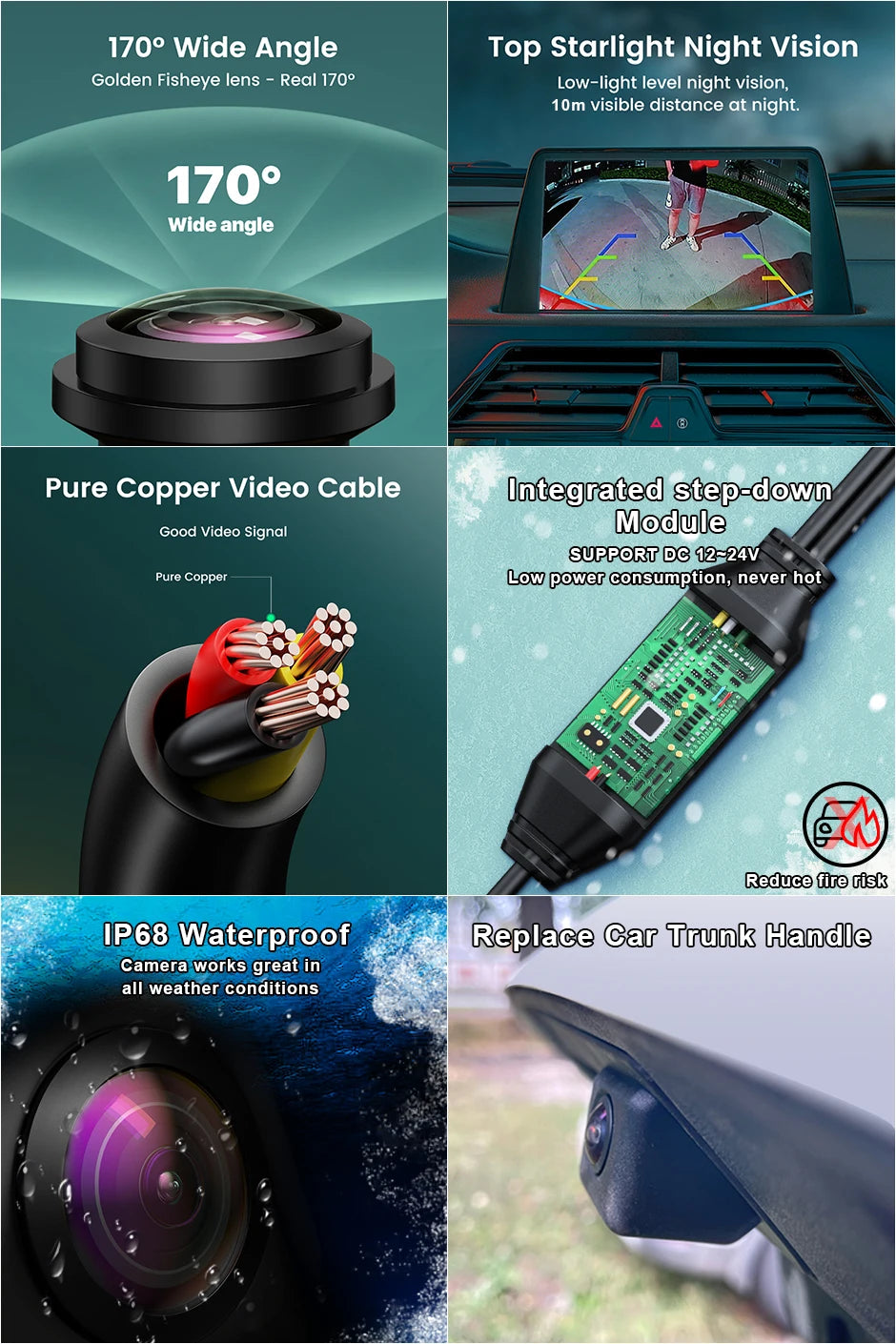

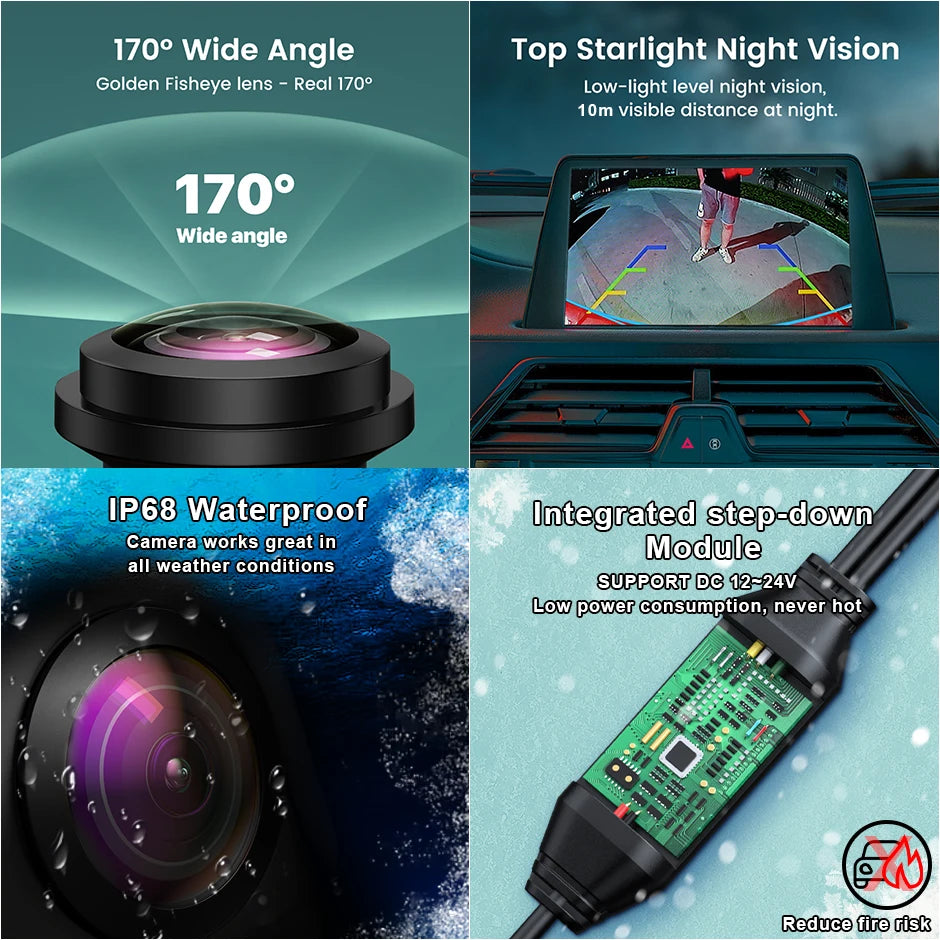

* AHD technology is High-definition video signals, it adopts advanced Y/C signal separation and filtering technology, bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction.
* Highly integrated 2053HD chips, Max HD 1080P Pixel. 170 degrees 6 Glass Fisheye Lens. Zero-delay front-end data is not encoded and compressed to the back end, Full real-time, High fidelity.
* The Camera support both AHD and CVBS video signal, it can work with both AHD Android monitors and all CVBS TFT monitors.

* Chips components : HD Sony/OV2053HD
* Viewing angle: 155~175 Degrees Visible Range .
* Effective pixels : CVBS:1280x720P (NTSC),
* AHD: 1920x1080P (PAL) or 1280x720P (NTSC).
* Signal format: NTSC or PAL
* Image resolution: 92W/200W pixels
* Video output: AHD Video Signal or CVBS Signal .
* Night Vision: Starlight Night Vision. The visible distance is greater than 10 meters.
* Night Vision Image : Automatic Gain Control, Auto White Balance, Auto Backlight Compensation
* Lens : 14/16MM Fisheye 6 glass Lens .
* Waterproof : IP68 / IP69
* Working power supply: DC12V~24V, 2A
* Working temperature: -30 °C ~ +70°C
* Maximum power: 3W

Tip:

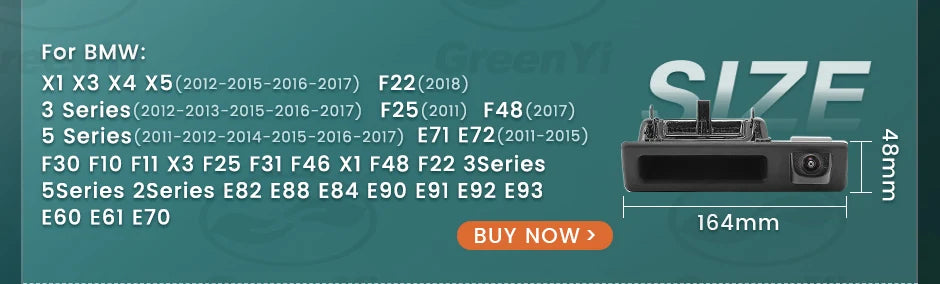

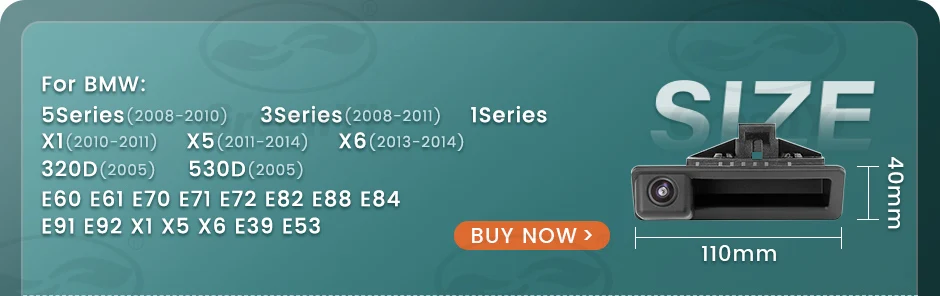

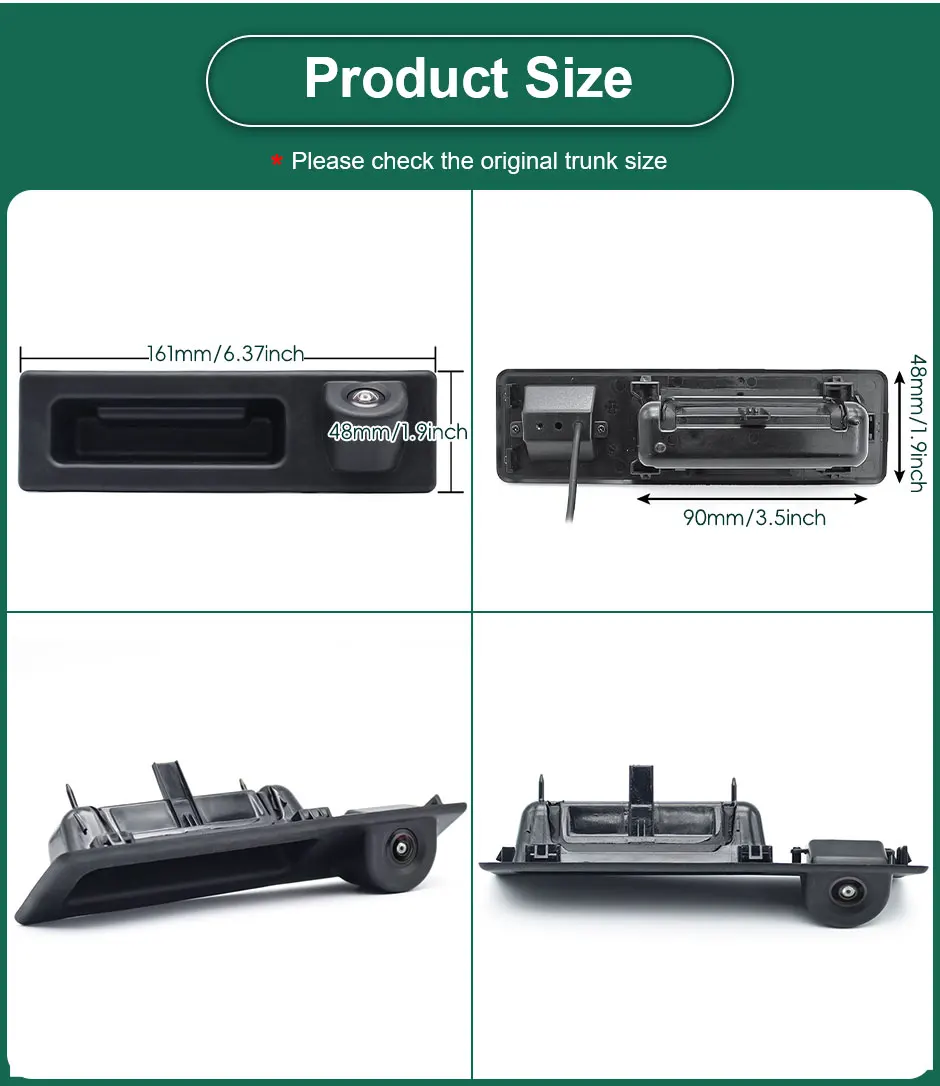

1. Because there may be slight differences between cars produced in different countries, please check the size before buying.

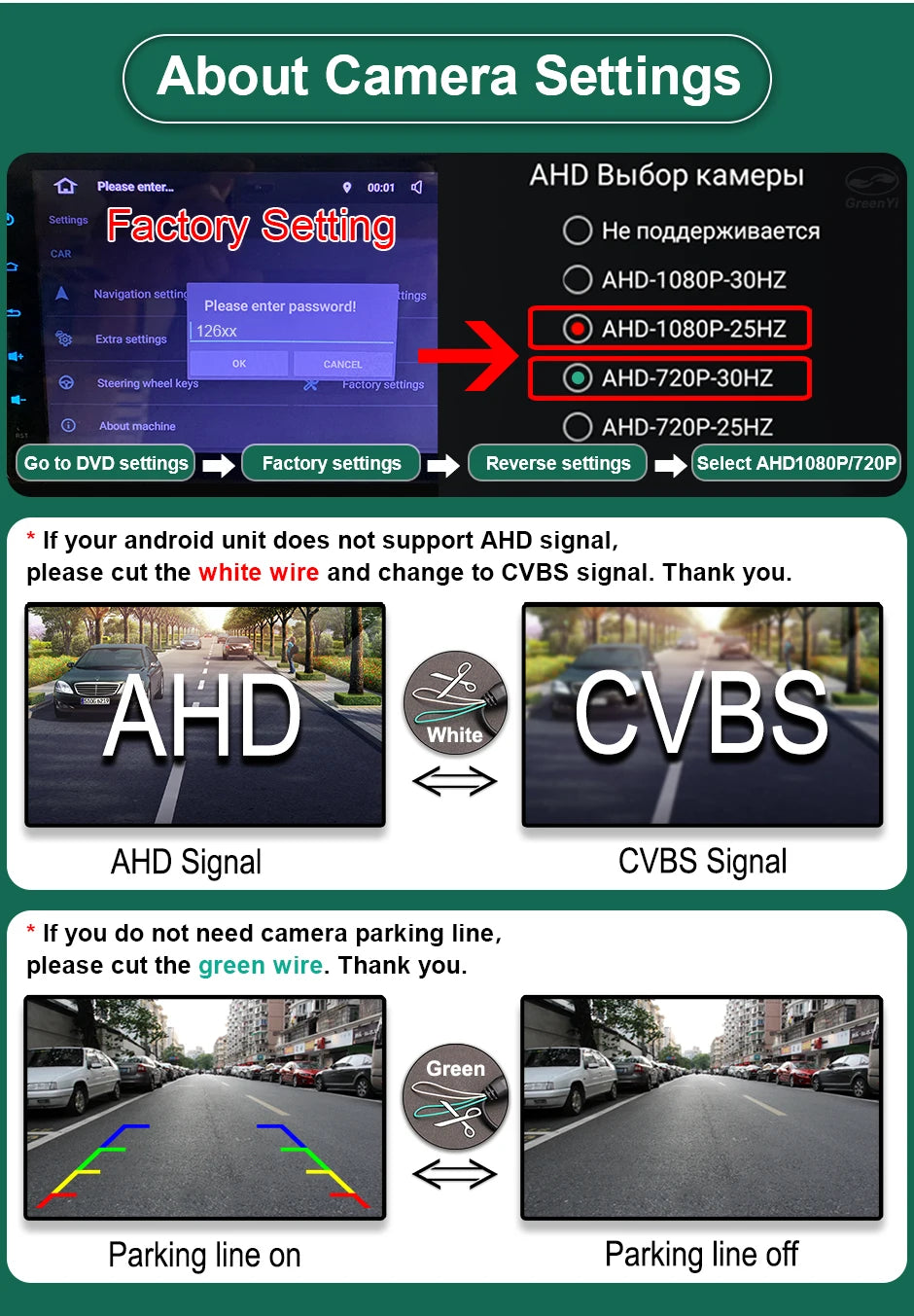

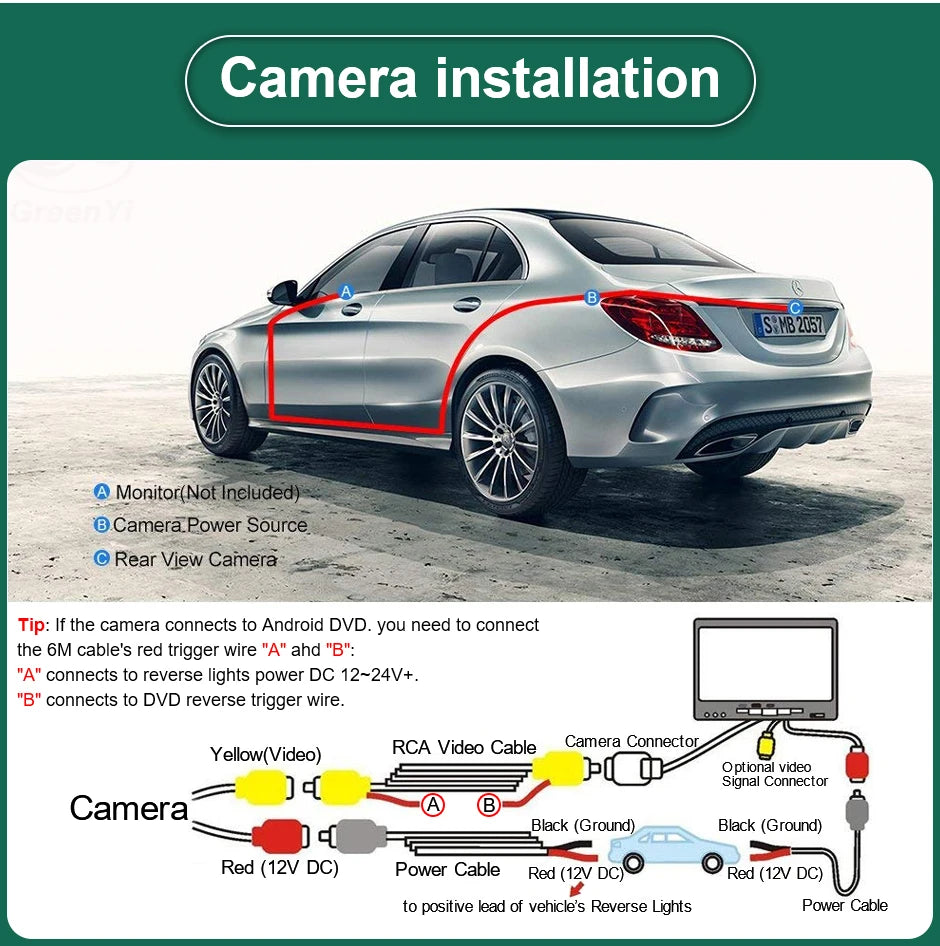

2. If your monitor can not support AHD video signal, please Cut the white wire change to CVBS video signal, please re-connect all cables.(The trajectory camera only supports AHD video signal)

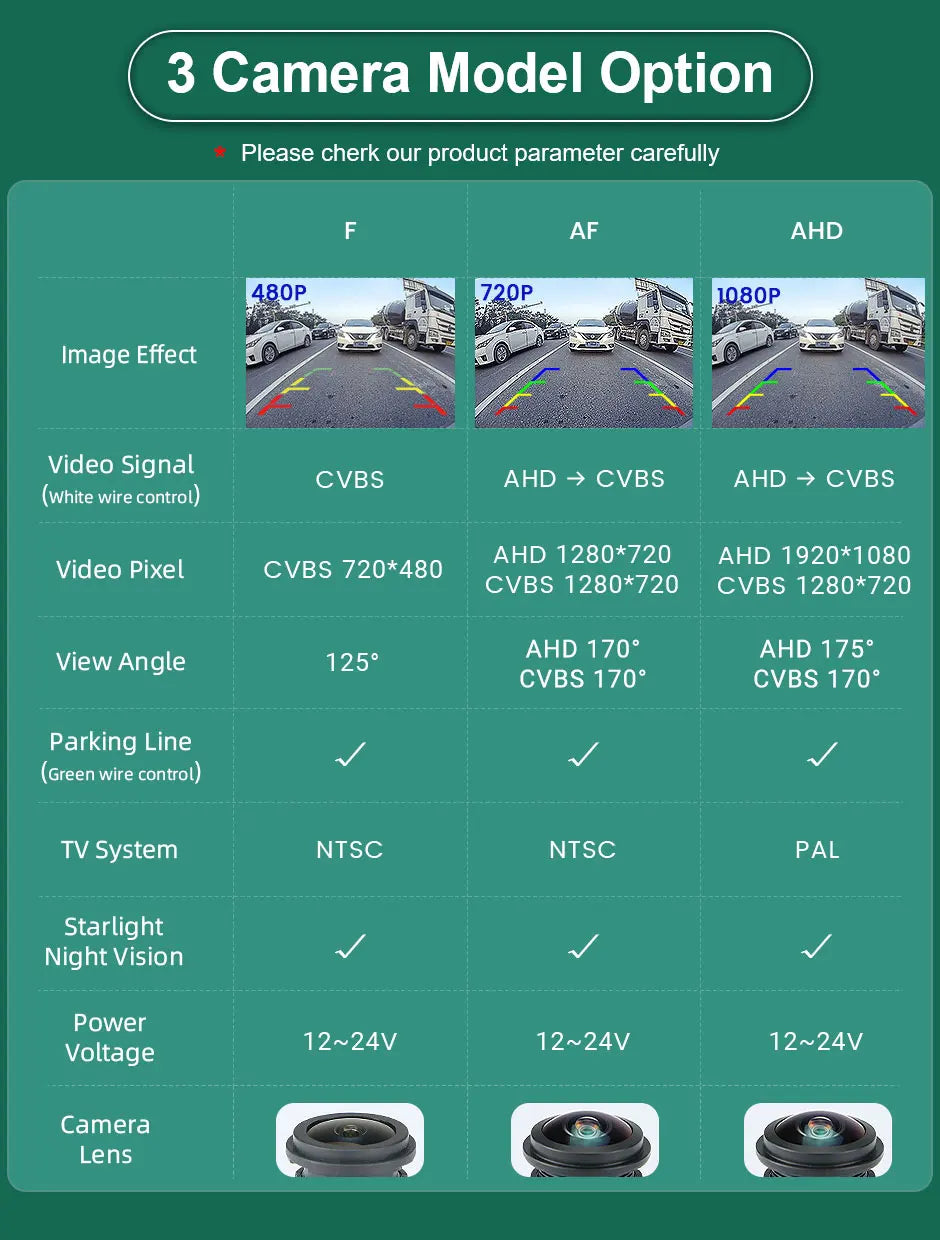

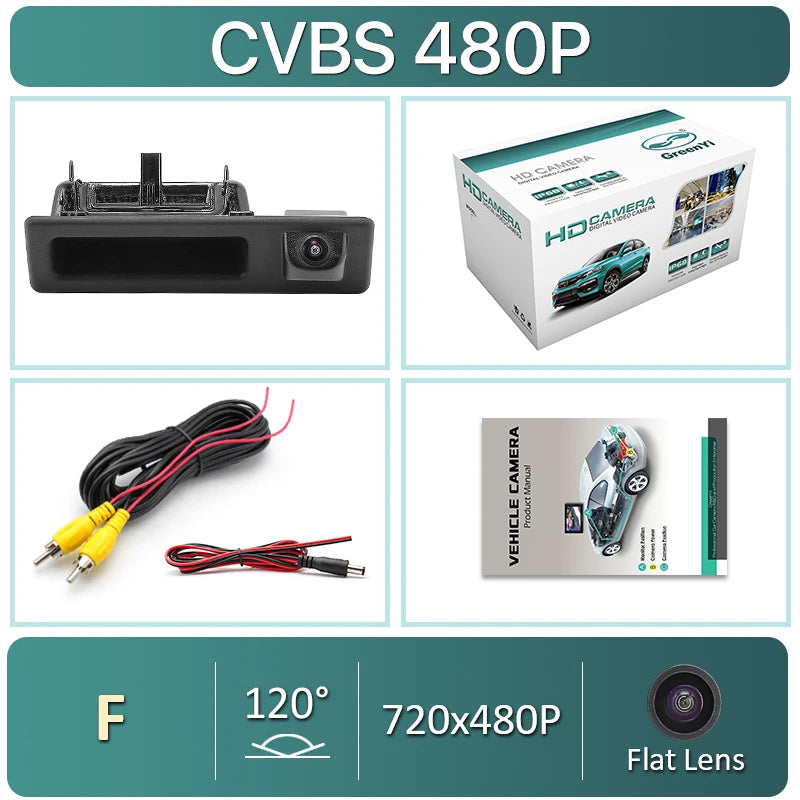

3. Optional "F" only is CVBS 7080 cheap Chips . it is 120 degree plastic flat glass lens, suitable for old android dvd and and monitor .
4. When connecting the camera with a DVD player, and it does not work properly, please check if the DVD reverse trigger wire is correctly connected.

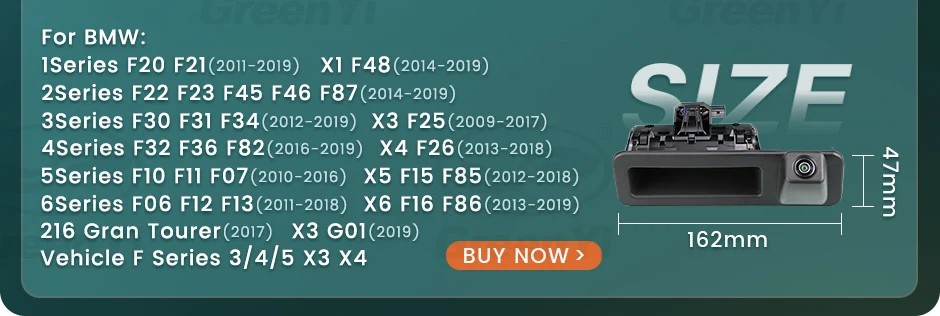

For BMW 3 5 Serise X1 X3 X4 X5 F10 F11 F25 F30 F31 E60 E61 E70 E71 E72 E82 E88 E84 E90 E91 E92 E93 2011-2015
